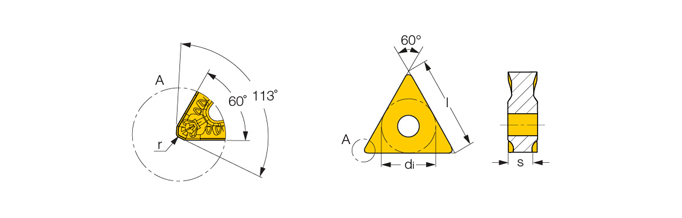

TNMX 452-M4MW IC6025
Turning Insert; 60 Triangle ; 0.866″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC6025 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Stainless Steel | | Min D.O.C. | 0.098″ |
| Application | | Ext. 60° Triangle 91° Approach | | Depth of Cut Maximum (APMX) | 0.217″ |
| Insert Style | TNMX | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Size | 452 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.866″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.313″ | Chip Breaker Type | HMW |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC6025 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces a high surface finish even at high feed rates. Used for heavy machining applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.043
