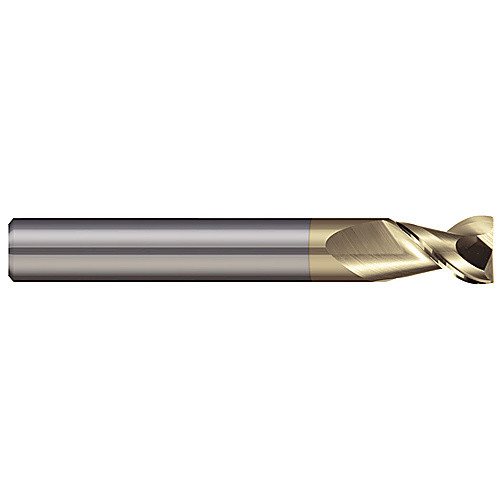

1/2″ Dia. - 2-1/2″ OAL - Carbide for Aluminum ALU-S-45°-HP Stub End Mill - 2 FL
| Cutting Diameter (DC) | 1/2″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Length Group | 1.3D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | ZrN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Inch |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Remarks | •Feature 45° helix for high speed milling of aluminum and soft, non-ferrous materials •Exceptional surface finishes with conventional machining methods as well as with today's high speed machining technology •45° helix diminishes chatter when machining in corners of parts •Sizes 3/8″ and larger feature a Weldon flat. | Country of Origin | USA |
Shipping Info
Package Weight
0.24
