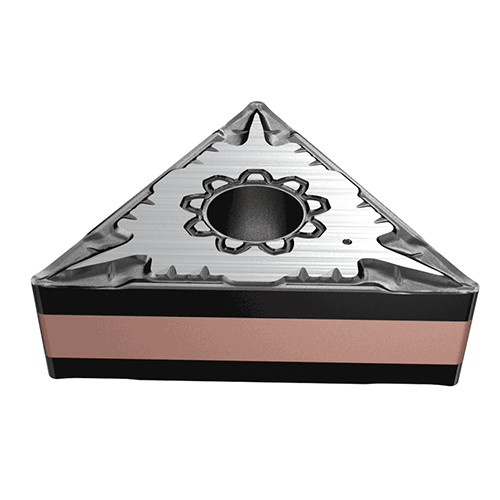

TNMG 431-F3M IC830
Turning Insert; 60 Triangle ; 0.866″ Length × 1/2″ IC × 0.0157″ Corner Radius ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.004″ |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Style | TNMG | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |

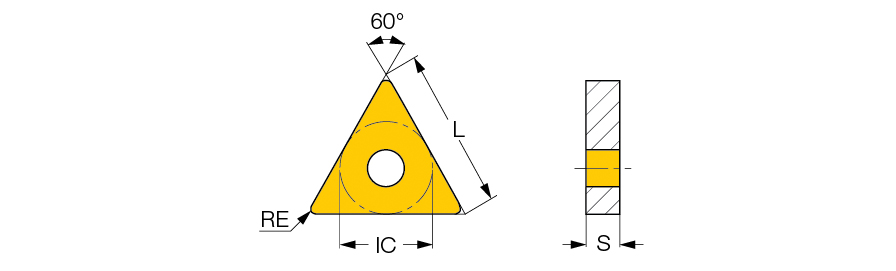

| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.01259 ″/rev |
| Insert Size | 431 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.866″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | F3M |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | AlTiN+TiN | Series/List # | ISOI |
| Grade | IC830 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided triangular inserts, first choice for finish turning on stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.033
