RCGX45E04 TC3030
Turning Insert; 60 Triangle × 1/2″ IC ; TC3030 ; Ceramic

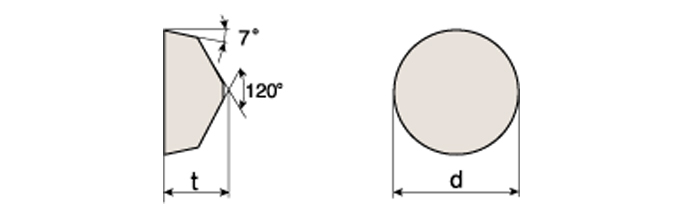

| Insert Style | RCGX | Max. Turning Feed (ft(max)) | 0.014″ |
| Insert Size | 45 | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.315″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Cutting Edge Material | Ceramic | Measurement Type | Inch |
| Grade | TC3030 | Shape | 60° Triangle |
| Tool Type | Turning Insert | Series/List # | ISOI |
| Min D.O.C. | 0.004″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Model No | 8866423 |
| Min. Turning Feed (ft(min)) | 0.002″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.009
