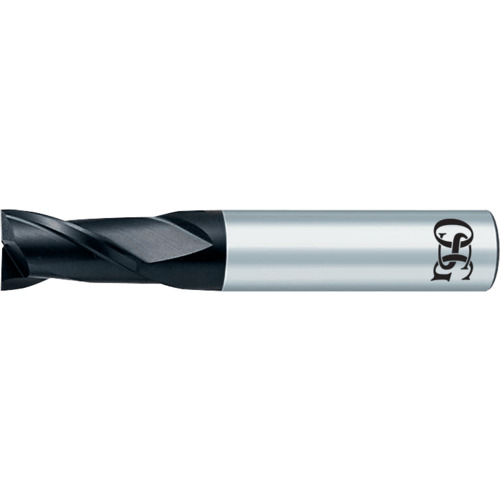

1/8″ Dia. × 1/8″ Shank × 3/8″ DOC × 6″ OAL, Carbide, Cr, 2 Flute, Square, Solid End Mill
Square End Mill; 1/8″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 6″ OAL ; 2 FL ; Carbide ; CrN ; Series 3621
| Cutting Diameter (DC) | 1/8″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 3″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 6″ | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Style | Square |
| Coating | CrN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 3621 |
Product Features
| Remarks | •Solid Carbide 2-Flute Square End Single End Mills •Center Cutting Micrograin CarbideTiCN: Titanium Carbonitride Coating | Country of Origin | Japan |
Shipping Info
Package Length
2.05000
Package Width
.45000
Package Weight
0.012
