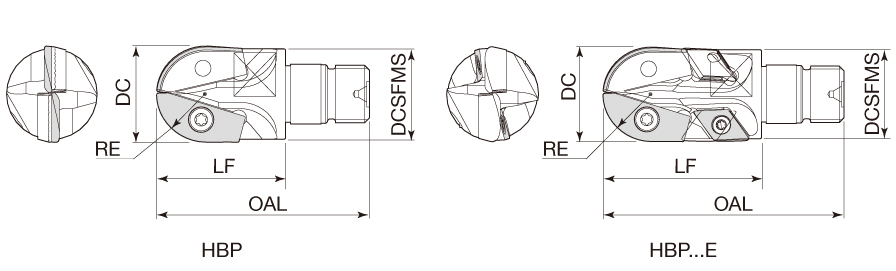

HBP030
Indexable End Mill; 30 mm Dia. × 24 mm LOC × 32 mm Shank Dia. × 130 mm OAL ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 30 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 30 mm | Functional Length (LF) | 40 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 24 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Pocket Milling|Profiling|Ramping|Shoulder Milling With Radius | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | ZPET3006-MJ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 30 mm |
Product Features
| Family Description | Indexable ball-nose endmill for semi-finishing, with T-Bar Modular System (TMS) | Country of Origin | Japan |
Shipping Info
Package Weight
0.732
