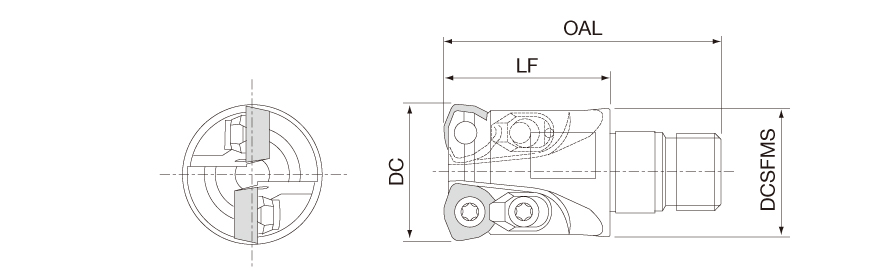

HXP06032RB
Indexable End Mill; 32 mm Dia. × 1.5 mm LOC × 32 mm Shank Dia. × 130 mm OAL ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 35 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | Fast Feed Endmill |
| Depth of Cut Maximum (APMX) | 1.5 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | Face Milling|Hole Enlarging|Pocket Milling|Ramping | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | WPMT06X415ZPR-ML | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 32 mm |
Product Features
| Family Description | Super high feed endmills with T-Bar Modular System (TMS) | Country of Origin | Japan |
Shipping Info
Package Weight
0.697
