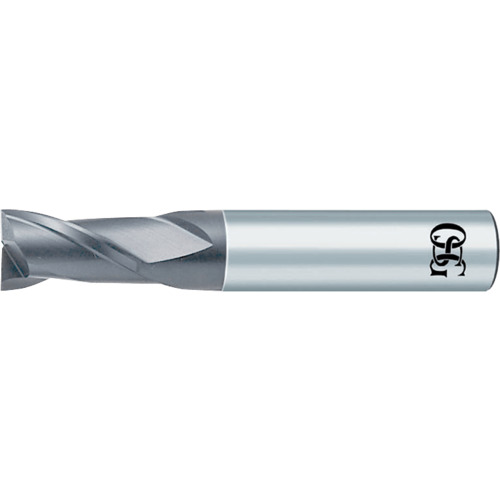

1/2″ Dia. × 1/2″ Shank × 1″ DOC × 83 mm OAL, Carbide, Cr, 2 Flute, Square, Solid End Mill
Square End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 83 mm OAL ; 2 FL ; Carbide ; CrN ; Series 3620
| Cutting Diameter (DC) | 1/2″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 2 mm |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | High Performance |
| Overall Length (OAL) | 83 mm | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | CrN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 3620 |
| Shank Type | Round |
Product Features
| Remarks | •Solid Carbide 2-Flute Square End Single End Mills •Used for general purpose milling in most materials of medium hardness such as steel, brass, iron and non-ferrous materials •Made from premium submicron grain carbide | Country of Origin | Japan |
Shipping Info
Package Length
3.70000
Package Width
1.00000
Package Height
.90000
Package Weight
.3250
