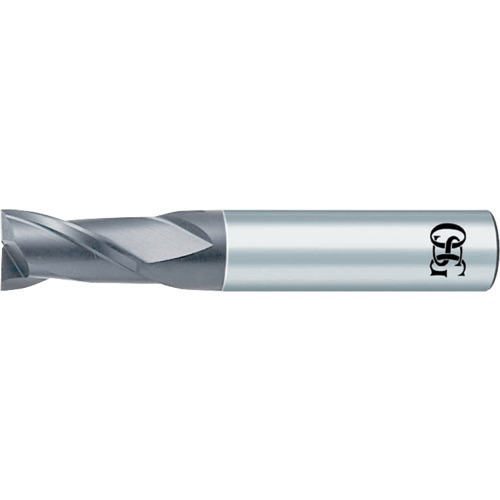

7/64″ Dia. × 1/8″ Shank × 7/32″ DOC × 64 mm OAL, Carbide, Cr, 2 Flute, Square, Solid End Mill
Square End Mill; 7/64″ Dia. × 7/32″ LOC × 1/8″ Shank Dia. × 64 mm OAL ; 2 FL ; Carbide ; CrN ; Series 3620
| Cutting Diameter (DC) | 7/64″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 7/32″ | Tool Type | Center Cut |
| Overall Length (OAL) | 64 mm | Style | Square |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1094″ |
| Coating | CrN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 3620 |
Product Features
| Remarks | •Solid Carbide 2-Flute Square End Single End Mills •Used for general purpose milling in most materials of medium hardness such as steel, brass, iron and non-ferrous materials •Made from premium submicron grain carbide | Country of Origin | Japan |
Shipping Info
Package Length
2.05000
Package Width
.45000
Package Weight
.0150
