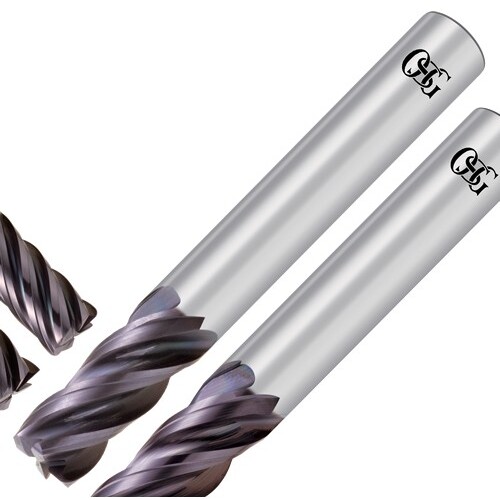

5/8″ Dia. × 5/8″ Shank × 1-1/4″ DOC × 3-1/2″ OAL, Carbide, TiAlN, 4 Flute, Variable Helix, Round, Corner Radius, Solid End Mill
SQ End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 2052
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Single-End |
| Overall Length (OAL) | 3-1/2″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.625″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 2052 |
| Flute Helix Angle (FHA) | Variable | Corner Radius (RE) / Chamfer Width (CHW) | 1/8″ |
| Shank Type | Round |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.95000
Package Width
1.15000
Package Height
.90000
Package Weight
.5900
