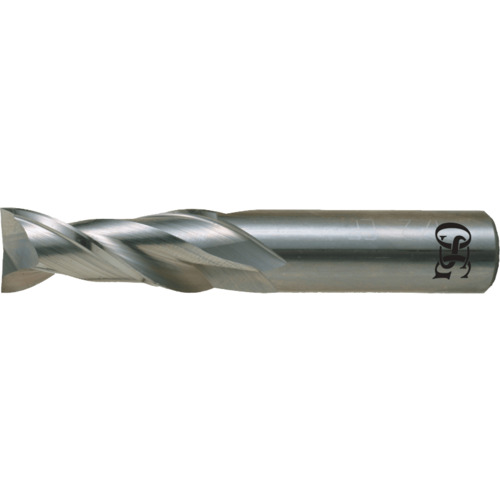

3/8″ Dia. × 3/8″ Shank × 1″ DOC × 2-1/2″ OAL, Carbide, Bright, 2 Flute, 30° Helix, Corner Radius, Solid End Mill
Corner Radius End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 2022
| Cutting Diameter (DC) | 3/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | Uncoated | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 2022 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
Product Features
| Remarks | •Carbide end mill for aluminum, aluminum alloys and copper alloys •Stub Length •2 Flute •Bright finish. | Country of Origin | USA |
