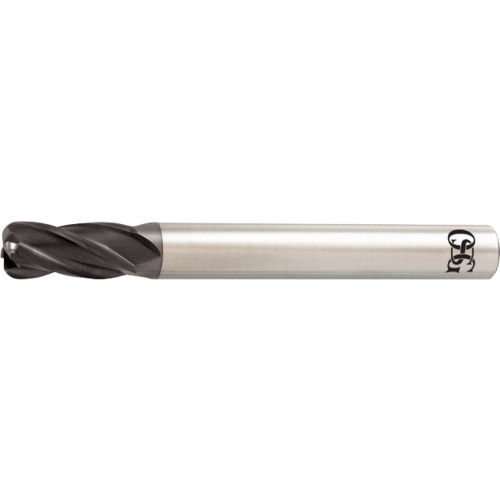

3/16″ Dia. × 3/16″ Shank × 5/8″ DOC × 2″ OAL, Carbide, TiAlN, 4 Flute, Corner Radius, Solid End Mill
SQ End Mill; 3/16″ Dia. × 5/8″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 0.02″ RE ; 4 FL ; Carbide ; AlTiN ; Series HP434
| Cutting Diameter (DC) | 3/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Center Cut |
| Overall Length (OAL) | 2″ | Style | Corner Radius |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1875″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | HP434 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
.55000
Package Weight
0.035
