VBET 22 L-SR HTi10, 0.03 mm Corner Radius, 3.18 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 35 Rhombic × 6.35 mm IC × 0.03 mm Corner Radius ; HTi10 ; Carbide

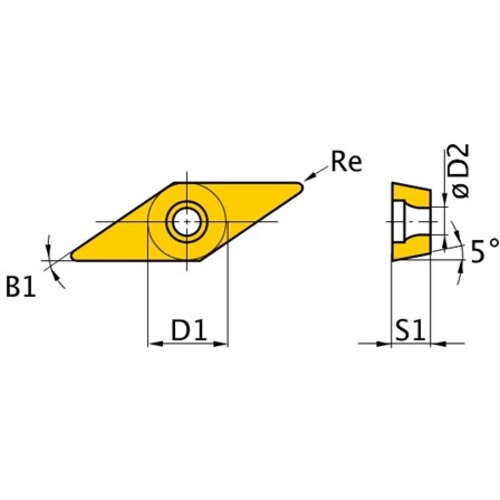

| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 2.85 mm |
| Application | Medium Cutting | Tool Type | Turning Insert |
| Insert Style | VBET | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.03 mm | Cutting Direction (HAND) | Left Hand |
| Insert Size | 22 | Chip Breaker Type | L-SR |
| Insert Thickness (S) | 3.18 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 35 Degrees | Shape | 35° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | HTi10 |
| Grade | HTi10 | Cutting Edge Effective Length (LE) | 7.3 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
