3/4X1-1/2X4 5FL EM

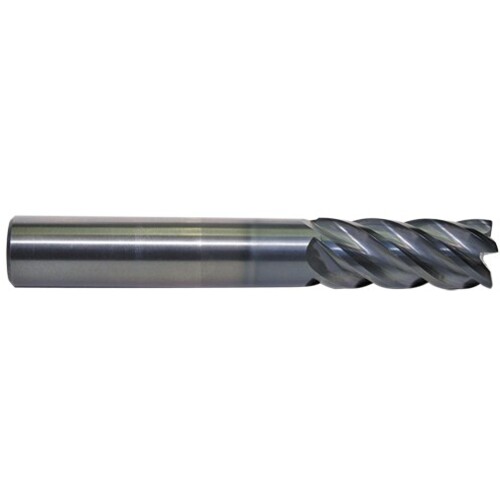

SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0″ RE ; 5 FL ; 1-1/2″ LBS ; Carbide ; AlCrN ; Series 278
| Cutting Diameter (DC) | 3/4″ | Usable Length (LU) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | AlCrN | Style | Roughing/Finishing |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 278 |
| End Shape | Square | Shank Size (SS) | 3/4″ |
Product Features
| Family Description | Alternate Manufacture # 37052 | Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.78700
Package Height
.78700
Package Weight
0.836
