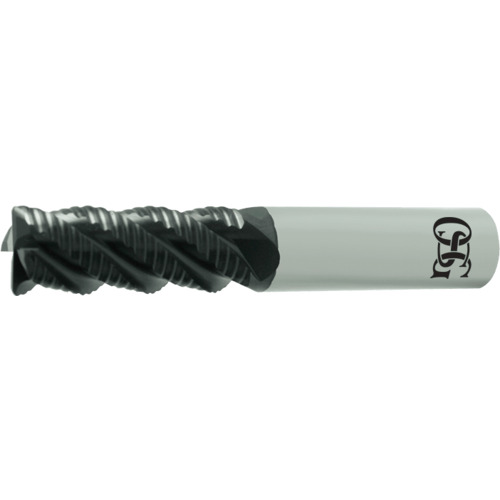

3/4″ Dia. × 3/4″ Shank × 1-1/2″ DOC × 4″ OAL, Carbide, TiAlN, Center Cutting, 4 Flute, 40° Helix, Round, Corner Radius, Solid End Mill
Corner Radius End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 2015
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Radius (RE) | 0.19″ |
| Overall Length (OAL) | 4″ | Style | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 2015 |
| Flute Helix Angle (FHA) | 40 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.19″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.40000
Package Width
1.20000
Package Height
1.05000
Package Weight
.9250
