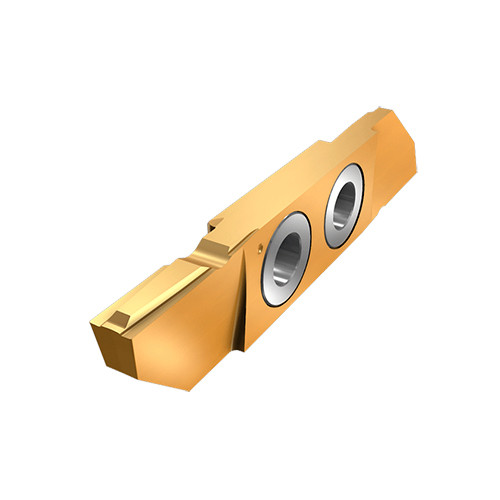

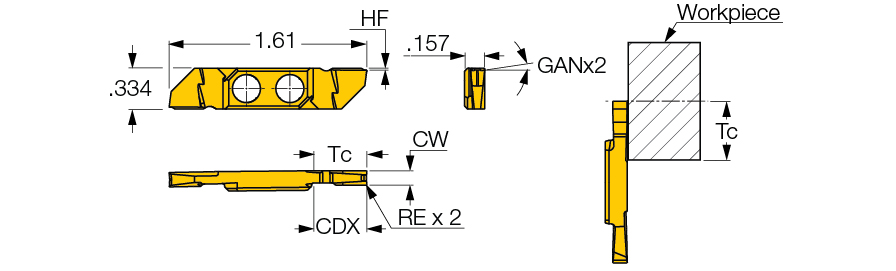

SCIR 41-AD08-30K8 IC1008
Turning Insert; 60 Triangle × 0.0031″ Corner Radius ; IC1008 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min. Turning Feed (ft(min)) | 0.00078 ″/rev |
| Application | | Ext. Grooving & Turning | Ext. Turning | | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Corner Radius (RE) | 0.0031″ | Number of Cutting Edges | 3 |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Shape | 60° Triangle |
| Grade | IC1008 | Series/List # | ISOI |
| Min D.O.C. | 0.005″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Model No | 8866423 |
Product Features
| Family Description | Turning inserts used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.037
