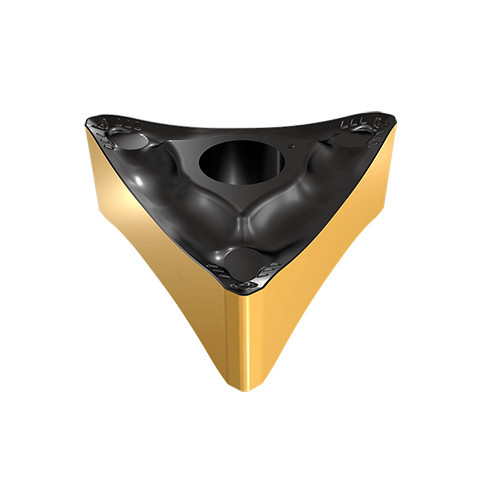

TNMX 342-M3PW IC830

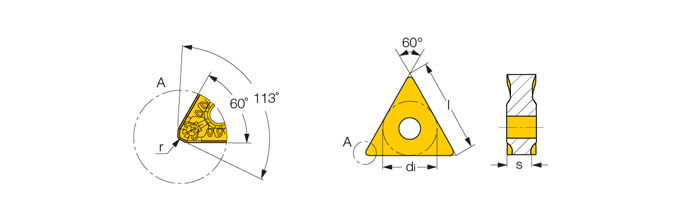

Turning Insert; 60 Triangle ; 0.65″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.098″ |
| Application | | Ext. 60° Triangle 91° Approach | | Depth of Cut Maximum (APMX) | 0.217″ |
| Insert Style | TNMX | Min. Turning Feed (ft(min)) | 0.01181 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Size | 342 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.65″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.173″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | HTW |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN+TiN | Shape | 60° Triangle |
| Grade | IC830 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.15″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces a high surface finish even at high feed rates. Used for heavy machining applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
