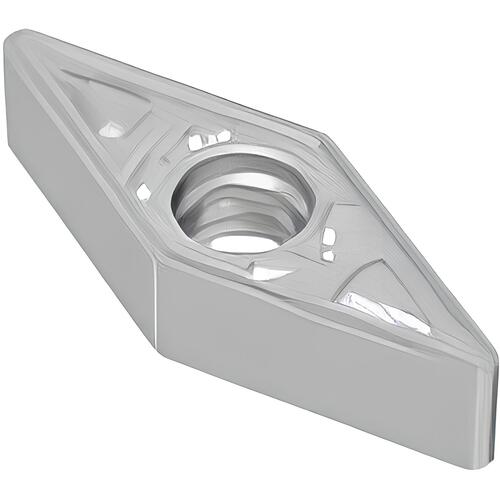

VNMU2.532-M6 TP3501 TURNING INSERT
Turning Insert; VNMU2.532-M6 TP3501 ; 11.7 mm Length ; 7.94 mm IC ; 0.8 mm Corner Radius ; Carbide ; Neutral
| Applicable Material | Steel | Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | VNMU | Tool Type | Turn Negative Insert |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 11.7 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 7.94 mm | Chip Breaker Type | M6 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Grade | TP3501 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.013
