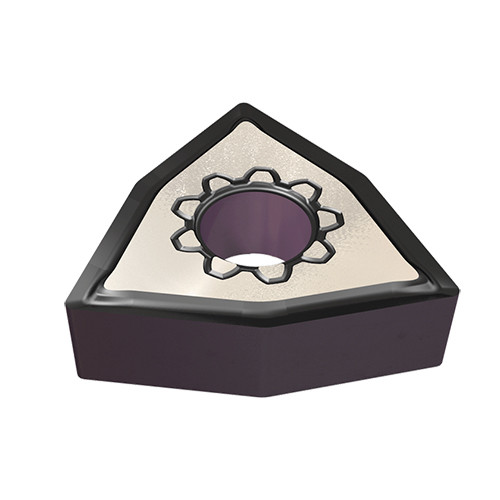

WNMG 432-F3S IC804
Turning Insert; 60 Triangle ; 0.343″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC804 ; Carbide ; AlTiN "SUMO TEC"
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.004″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Style | WNMG | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01377 ″/rev |
| Insert Size | 432 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.343″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |

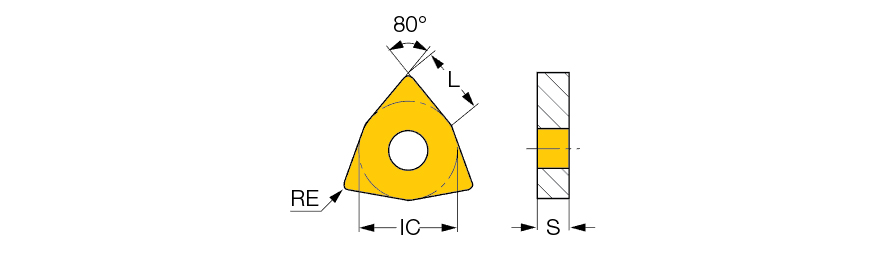

| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC804 | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided 80° trigon inserts for titanium and heat resistant materials finishing applications | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.024
