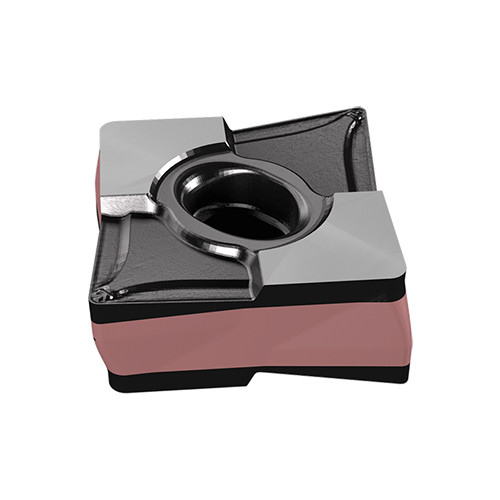

CXMG 12T508-F3M IC806
Turning Insert; 60 Triangle ; 0.541″ Length × 0.492″ IC × 0.0315″ Corner Radius ; IC806 ; Carbide ; AlTiN "SUMO TEC"
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.031″ |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | CXMG | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Size | 12T | Number of Cutting Edges | 3 |

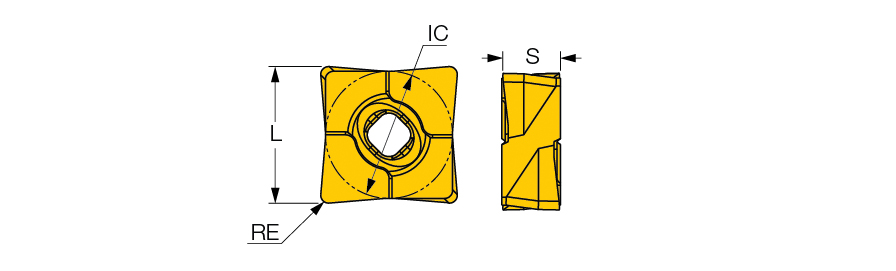

| Cutting Edge Length (L) | 0.541″ | Chip Breaker Type | F3M |
| Insert Thickness (S) | 0.228″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 0.492″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC806 | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | 80° double-sided and double-positive rhombic inserts with a positive rake for finishing on stainless steel and H.T.A. Clamped in a dovetail rigid clamping pocket. Can be regarded as two positive inserts. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.028
