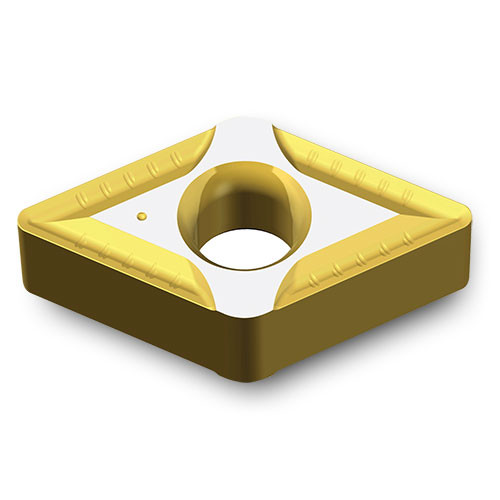

DNMG3.53.53MK TT9225
Turning Insert; 60 Triangle ; 0.533″ Length × 0.438″ IC × 0.047″ Corner Radius ; TT9225 ; Carbide ; TiCN+Al2O3+TiN
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 0.157″ |
| Corner Radius (RE) | 0.047″ | Min. Turning Feed (ft(min)) | 0.009″ |
| Insert Size | 3.53.53 | Max. Turning Feed (ft(max)) | 0.02″ |
| Cutting Edge Length (L) | 0.533″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.219″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.438″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 55 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | TT9225 | Body Material | Carbide |
| Min D.O.C. | 0.06″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.025
