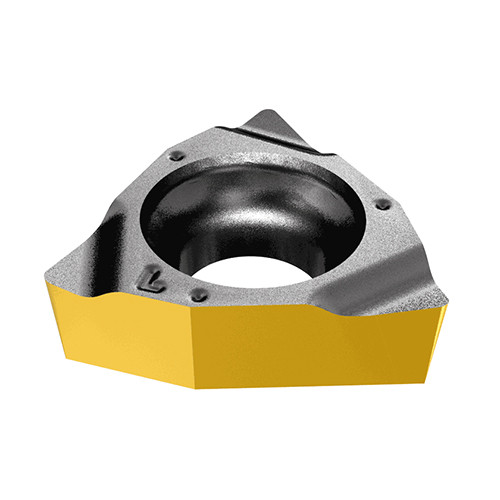

WBGT 520L IC807
Turning Insert; 80 Trigon ; 0.086″ Length × 0.156″ IC × 0.0079″ Corner Radius ; IC807 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.004″ |
| Application | | Int. 80° Trigon 93° Approach | | Depth of Cut Maximum (APMX) | 0.039″ |
| Insert Style | WBGT | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.00393 ″/rev |
| Insert Size | 520 | Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Length (L) | 0.086″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.063″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.156″ | Chip Breaker Type | T |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Shape | 80° Trigon |
| Grade | IC807 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.088″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | Trigon 5° positive flank inserts with a ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.003
