| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.197″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.591″ |
| Insert Style | CNMM | Min. Turning Feed (ft(min)) | 0.0217 ″/rev |

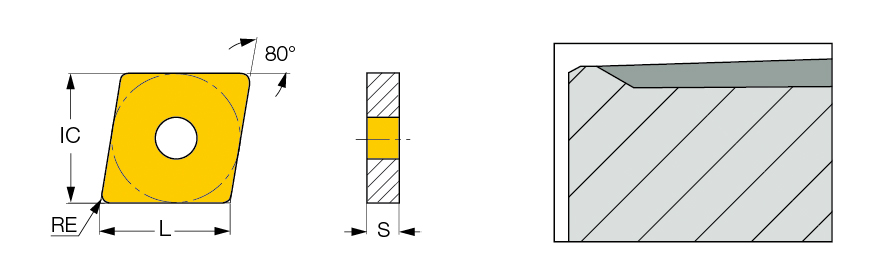

| Corner Radius (RE) | 0.0945″ | Max. Turning Feed (ft(max)) | 0.0591 ″/rev |
| Insert Size | 866 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 1.015″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1″ | Chip Breaker Type | H5P |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | 80° Rhombic |
| Grade | IC8250 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.359″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features

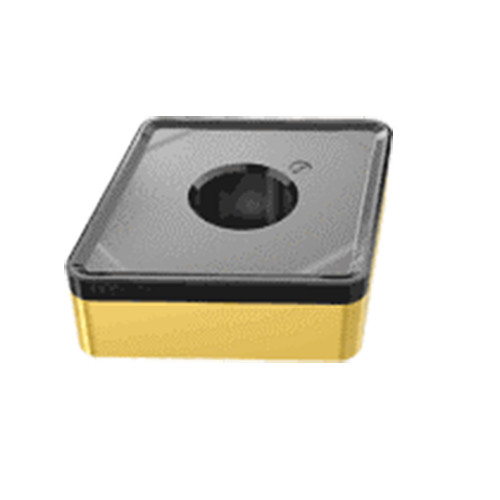

| Family Description | Single-sided 80° rhombic insert with a strong cutting edge. Used for extra rough turning in the windmill and shipbuilding industries. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.087
