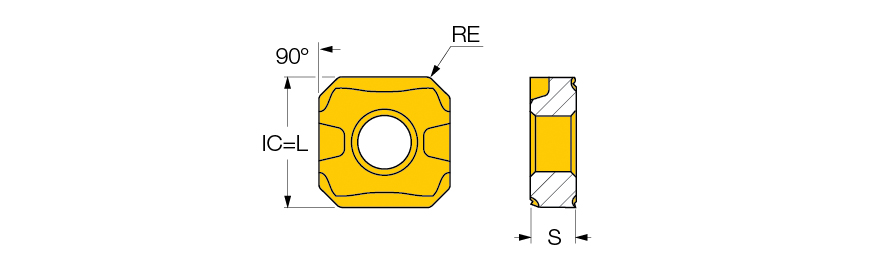

SNMG 432-EM-R IC807
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys| | Tool Type | Turning Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Min D.O.C. | 0.118″ |
| Insert Style | SNMG | Depth of Cut Maximum (APMX) | 0.236″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.0197 inch/rev |
| Insert Size | 432 | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN|TiN | Shape | Square |
| Grade | IC807 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.1772″ | Model No | 8866423 |
Product Features
| Family Description | Square, double-sided inserts with 4 cutting edges (2 on each side) and truncated radii which facilitate heat transfer. Sharp cutting edge with a positive 13° chipformer rake angle. Used for rough machining high temperature alloys at ap<6 mm | Country of Origin | Israel |
| Remarks | Requires the use of RST 443R/L SET - seat when used on DSSNR/L tools and TSN 423-PIN SET seat when used on PSSNR/L-JHP and PSDNN-JHP tools. For operating instructions, click on More Info |
Shipping Info
Package Weight
.0220
