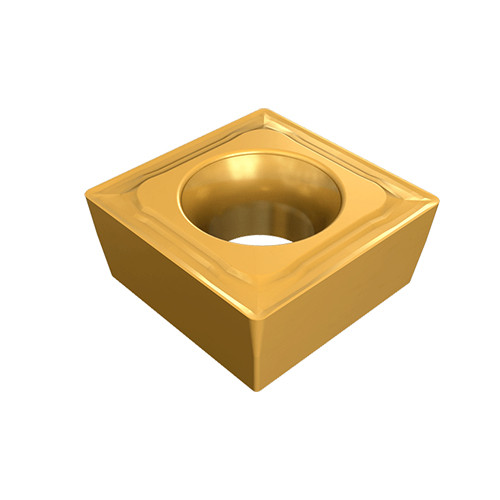

SCMT 3-1-14 IC9150
Turning Insert; Square ; 3/8″ Length × 3/8″ IC × 0.016″ Corner Radius ; IC9150 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.039″ |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 75° Approach | | Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Style | SCMT | Min. Turning Feed (ft(min)) | 0.00472 ″/rev |

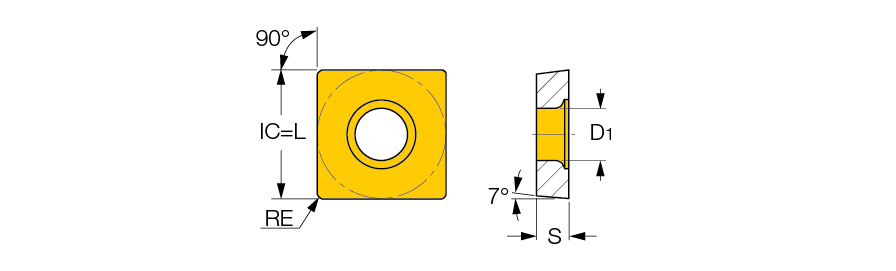

| Corner Radius (RE) | 0.016″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | 3-1 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 3/8″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | 14 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC9150 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Square 7° positive flank inserts for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.01
