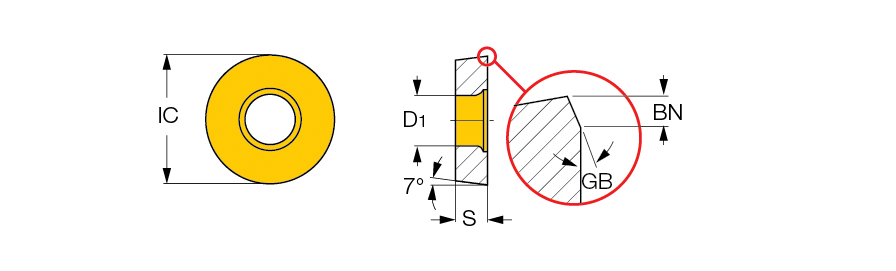

RCMX 200600 IC9250
Turning Insert; Round x 0.787″ IC ; IC9250 ; Carbide ; TiCN+alpha Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Depth of Cut Maximum (APMX) | 0.394″ |
| Application | | Ext. Round Face & Turn | | Min. Turning Feed (ft(min)) | 0.01968 ″/rev |
| Insert Style | RCMX | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Insert Size | 200 | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 1/4″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.787″ | Chip Breaker Type | G |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+alpha Al2O3+TiN | Shape | Round |
| Grade | IC9250 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.256″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
| Min D.O.C. | 0.098″ |
Product Features
| Family Description | Round 7° positive flank inserts with reinforced cutting edge for semi-roughing & rough profiling on a wide range of materials. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.055
