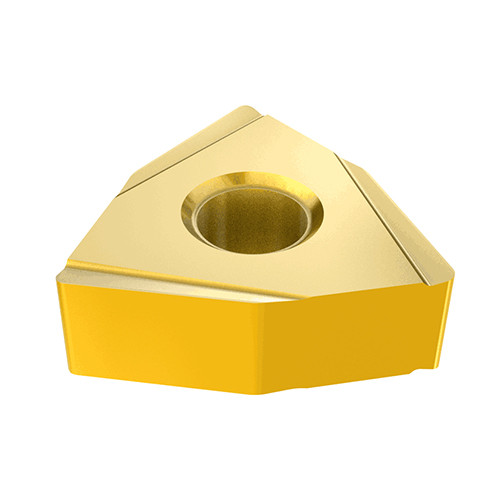

WNMZ 431-RF IC530N
Turning Insert; 80 Trigon ; 0.343″ Length × 1/2″ IC × 0.0157″ Corner Radius ; IC530N ; Cermet ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | | Depth of Cut Maximum (APMX) | 0.138″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min. Turning Feed (ft(min)) | 0.0047 ″/rev |
| Insert Style | WNMZ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |

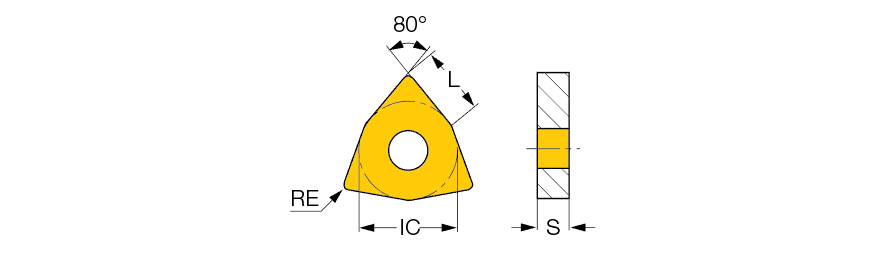

| Corner Radius (RE) | 0.0157″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 431 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.343″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | F |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Trigon |
| Coating | TiCN+TiN | Series/List # | ISOI |
| Grade | IC530N | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
| Min D.O.C. | 0.016″ |
Product Features
| Family Description | Double-sided trigon inserts with a ground chipformer for finishing applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
