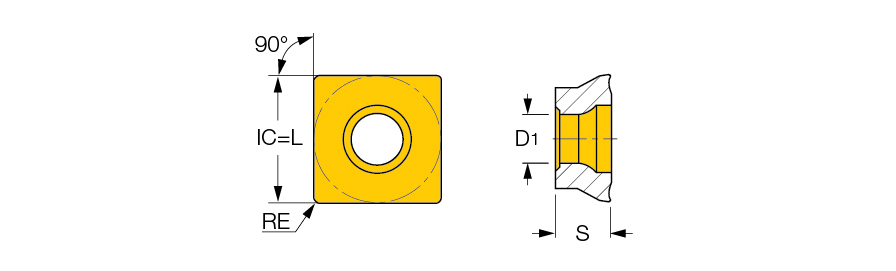

SC45MT 100508-SM IC8150
Turning Insert; Square ; 3/8″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.02″ |
| Application | | Ext. 90°Square 45°Face&Turn Ap | Int. 90° Square 45° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | SC45 | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | MT 1 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 3/8″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.197″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | SM |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiCN+TiN | Shape | Square |
| Grade | IC8150 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.177″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features

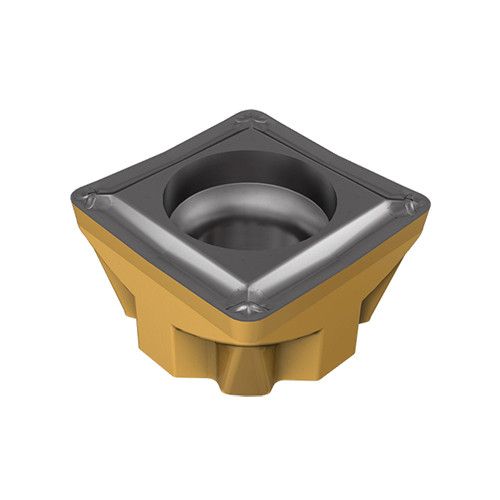

| Family Description | Single-sided square insert. Used for semi-finishing and finishing on a wide range of materials including soft materials and exotic alloys (part of the CHAMELEON multifunction system). | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.011
