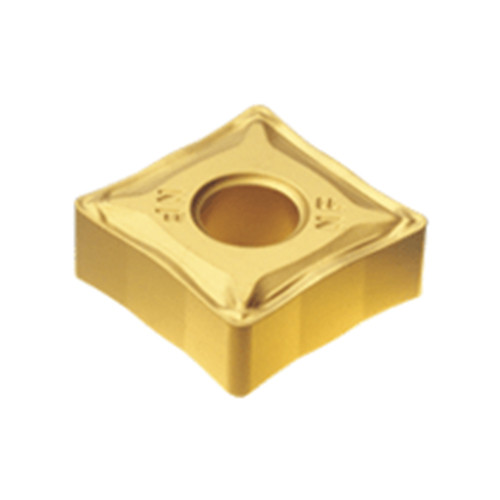

QNMG 432-NF IC8150
Turning Insert; Q ; 0.525″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.031″ |
| Application | | Ext. 80° Q#MG 95° Approach | Ext. 80° Q#MG 95°Approach Face | Ext. 90°Square 45°Face&Turn Ap | Int. 80° Q#MG 95° Approach | Int. 80° Q#MG 95°Approach Face | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | QNMG | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Size | 432 | Number of Cutting Edges | 3 |

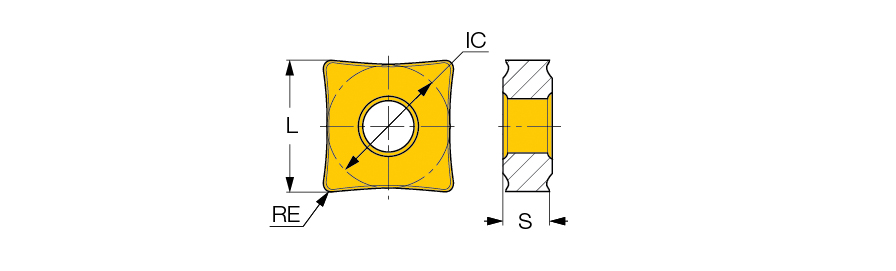

| Cutting Edge Length (L) | 0.525″ | Chip Breaker Type | NF |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Q |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features

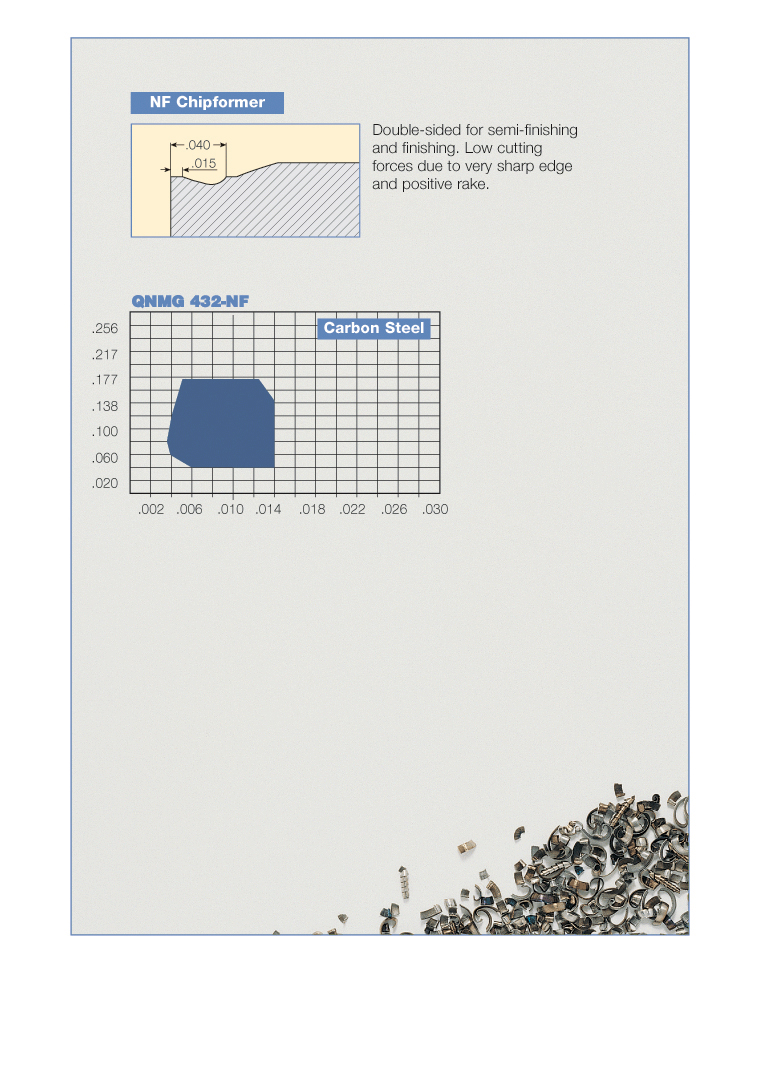

| Family Description | Double-sided inserts with four 80° corners for semi-finishing and finishing. Low cutting forces due to very sharp edgeand positive rake. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.023
