| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | | Min D.O.C. | 0.142″ |
| Insert Style | SNMM | Depth of Cut Maximum (APMX) | 0.63″ |
| Corner Radius (RE) | 0.0945″ | Min. Turning Feed (ft(min)) | 0.02362 ″/rev |
| Insert Size | 866 | Max. Turning Feed (ft(max)) | 0.05905 ″/rev |
| Cutting Edge Length (L) | 1″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Model No | 8866423 |
Product Features

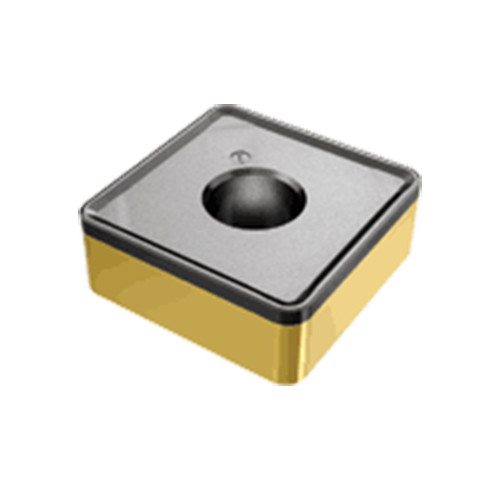

| Family Description | Single-sided square insert with a strong cutting edge. Used for extra rough turning in the windmill and shipbuilding industries. | Country of Origin | Israel |

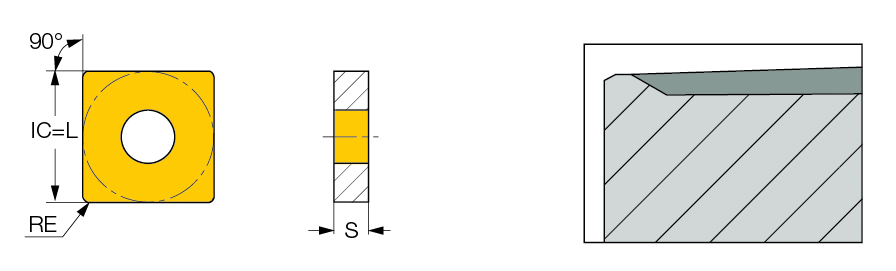

| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.173
