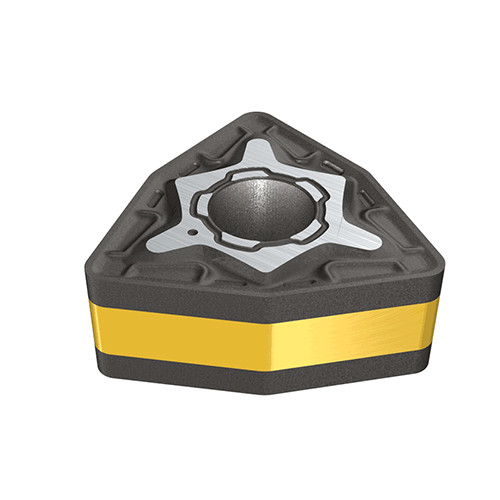

WNMG 3-3-M3P IC8250

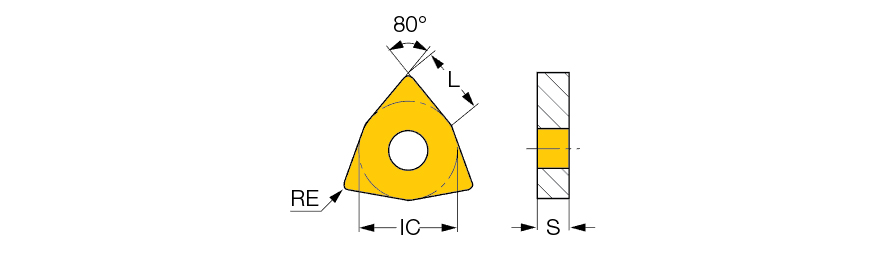

Turning Insert; 80 Trigon ; 0.257″ Length × 3/8″ IC × 0.0472″ Corner Radius ; IC8250 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.031″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | WNMG | Min. Turning Feed (ft(min)) | 0.0071 ″/rev |
| Corner Radius (RE) | 0.0472″ | Max. Turning Feed (ft(max)) | 0.0236 ″/rev |
| Insert Size | 3-3 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.257″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | M3P |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC8250 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided trigon inserts, for medium machining conditions on steel. Low cutting forces due to positive rake, provide smooth cutting. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
