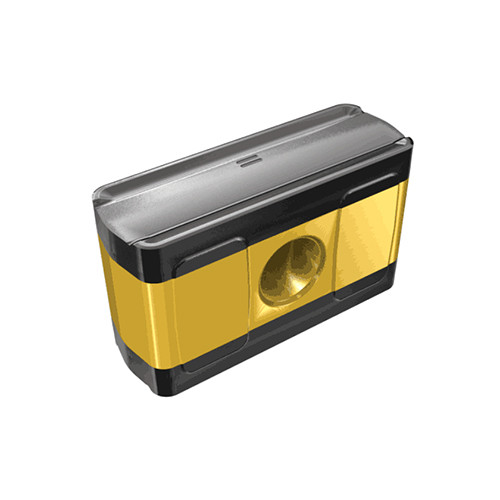

LOMX 402224-H6P IC8150
Turning Insert; Rectangle ; 1.587″ Length × 0.0945″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN

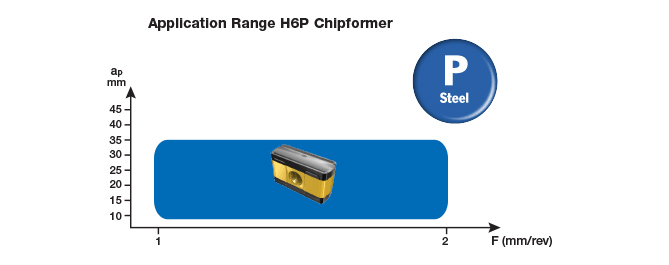

| Applicable Material | | Steel | Cast Iron | | Depth of Cut Maximum (APMX) | 1.378″ |
| Application | | Ext. Tangential 75° Approach | | Min. Turning Feed (ft(min)) | 0.03937 ″/rev |
| Insert Style | LOMX | Max. Turning Feed (ft(max)) | 0.07874 ″/rev |

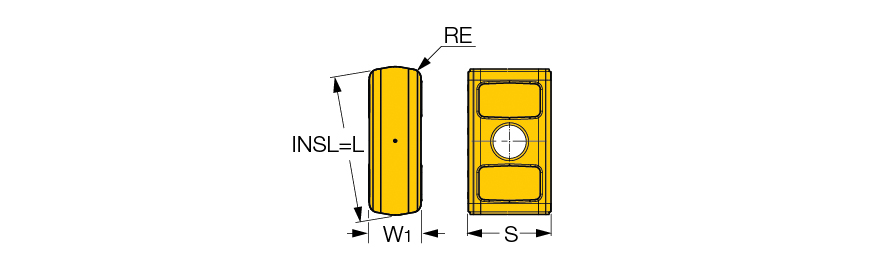

| Corner Radius (RE) | 0.0945″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 402 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 1.587″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.89″ | Chip Breaker Type | H6P |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiCN+TiN | Shape | Rectangle |
| Grade | IC8150 | Series/List # | ISOI |
| Tool Type | Turn Negative Inserts | Body Material | Carbide |
| Min D.O.C. | 0.276″ | Model No | 8866423 |
Product Features
| Family Description | Tangential inserts with 4 cutting edges for high metal removal of up to 1.4″ D.O.C. on steel | Country of Origin | Israel |
Shipping Info
Package Weight
0.371
