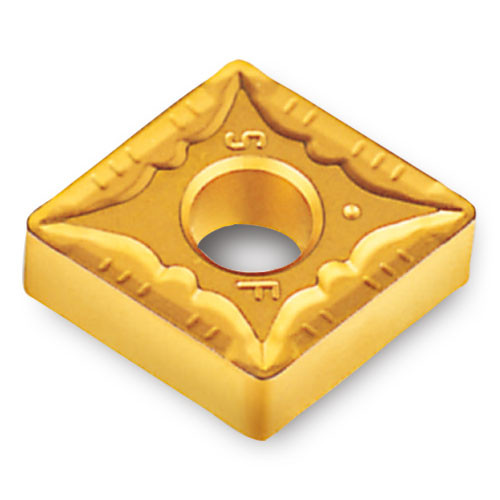

CNMG431SF TT9080
Turning Insert; 60 Triangle ; 0.508″ Length × 1/2″ IC × 0.016″ Corner Radius ; TT9080 ; Carbide ; TiAlN+TiN
| Insert Style | CNMG | Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.003″ |
| Insert Size | 431 | Max. Turning Feed (ft(max)) | 0.01″ |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN+TiN | Series/List # | ISOI |
| Grade | TT9080 | Body Material | Carbide |
| Min D.O.C. | 0.02″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.023
