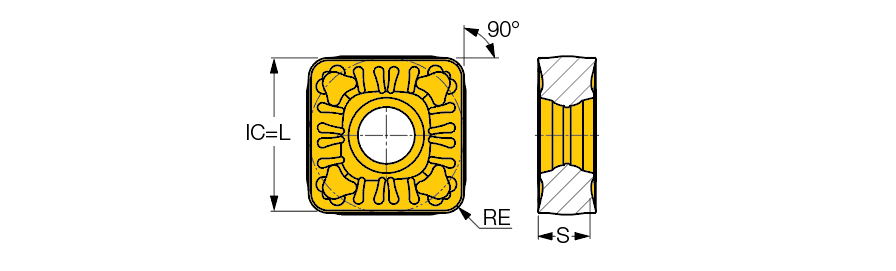

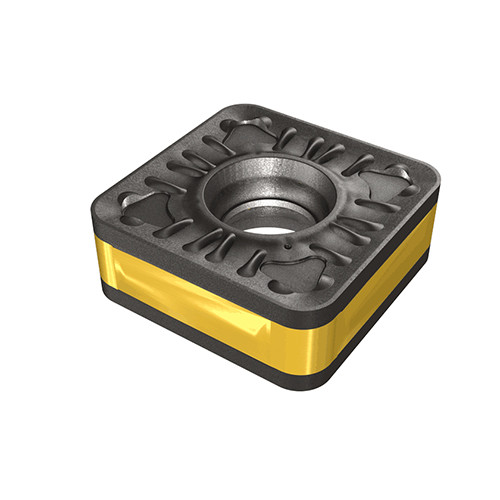

SOMG 646-R3P-IQ IC8250
Turning Insert; Square ; 3/4″ Length × 3/4″ IC × 0.0945″ Corner Radius ; IC8250 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.138″ |

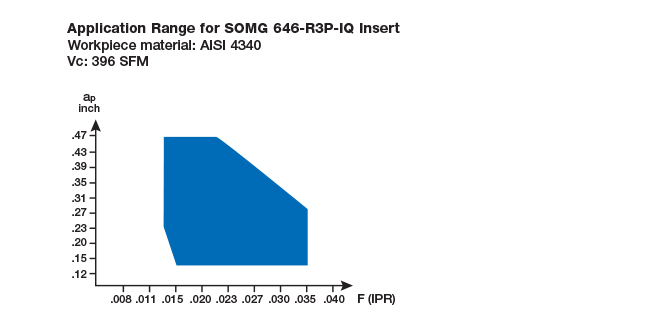

| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | | Depth of Cut Maximum (APMX) | 0.472″ |
| Insert Style | SOMG | Min. Turning Feed (ft(min)) | 0.01574 ″/rev |
| Corner Radius (RE) | 0.0945″ | Max. Turning Feed (ft(max)) | 0.03937 ″/rev |
| Insert Size | 646 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 3/4″ | Chip Breaker Type | R3P |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided 7° negative side flank square inserts for heavy turning on steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.066
