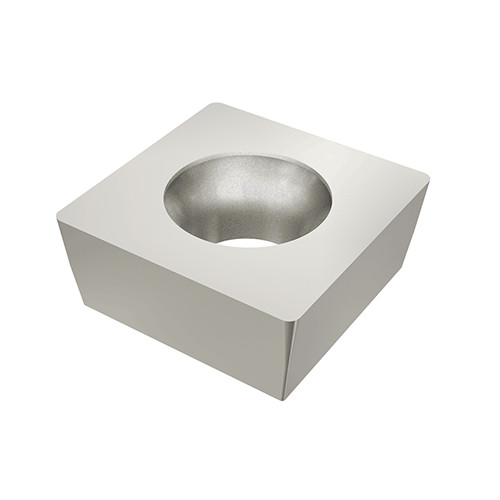

SCMW 432 IC20
Turning Insert; Square ; 1/2″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC20 ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min. Turning Feed (ft(min)) | 0 ″/rev |
| Application | | Chamfering & Bottom Deburring | Countersinking | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | Slanted Shoulder & Chamfer | | Max. Turning Feed (ft(max)) | 0 ″/rev |

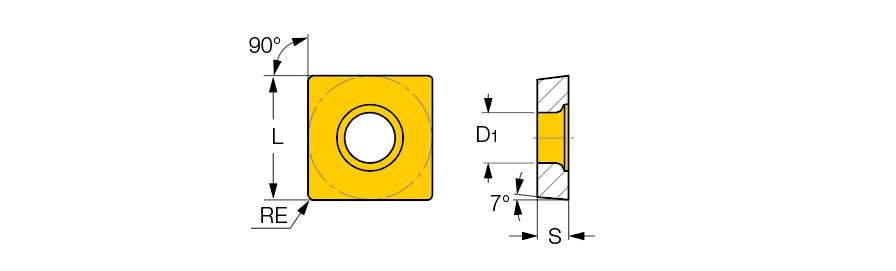

| Corner Radius (RE) | 0.0315″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 1/2″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | W |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IC20 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.217″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Square 7° positive flank, flat rake inserts, for short chipping materials. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances click on More Info. |
Shipping Info
Package Weight
0.021
