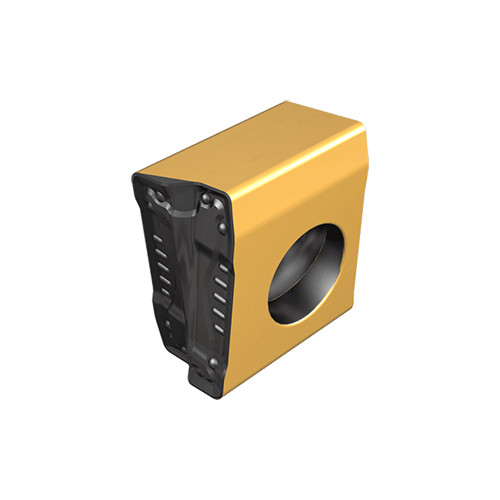

LNMX 1608R-HF IC8250
Turning Insert; Rectangle ; 0.63″ Length × 0.0472″ Corner Radius ; IC8250 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Depth of Cut Maximum (APMX) | 0.094″ |
| Application | | Ext. Tangential 12° Approach | Ext. Tangential 78° Face Approach | | Min. Turning Feed (ft(min)) | 0.05905 ″/rev |
| Insert Style | LNMX | Max. Turning Feed (ft(max)) | 0.09448 ″/rev |
| Corner Radius (RE) | 0.0472″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 160 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.551″ | Chip Breaker Type | HF |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | Rectangle |
| Grade | IC8250 | Series/List # | ISOI |
| Tool Type | Turn Negative Inserts | Body Material | Carbide |
| Min D.O.C. | 0.02″ | Model No | 8866423 |
Product Features
| Family Description | Tangentially Clamped Rough Turning Inserts for High Feed (up to .094 inch/rev) | Country of Origin | Israel |
Shipping Info
Package Weight
0.046
