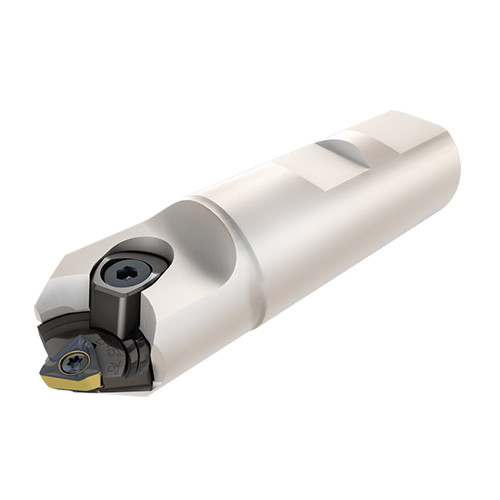

HM390 E10-80 D05-1-W25-07

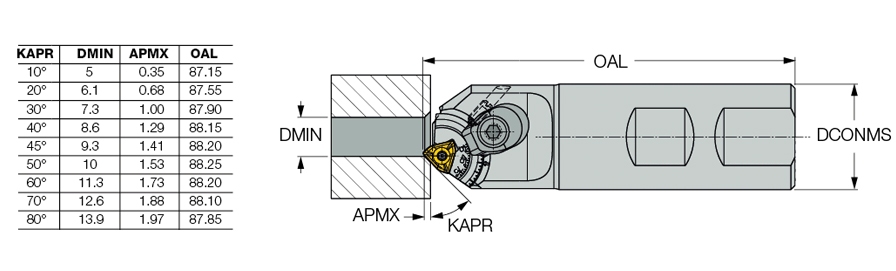

Indexable End Mill; 13.9 mm Dia. × 0.35 mm LOC × 25 mm Shank Dia. × 87.85 mm OAL ; Weldon Shank ; 10 Degrees
| Cutting Diameter (DC/DCX) | 13.9 mm | Functional Length (LF) | 55.85 mm |
| Cutting Item Count (CICT) | 1 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.35 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 87.85 mm | Tool Cutting Edge Angle (KAPR) | 10 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | | Countersinking | Helical Interpolation | Slanted Shoulder & Chamfer | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TCCT 0703PCR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.28 Kg | Cutting Diameter Maximum (DCX) | 13.9 mm |
Product Features

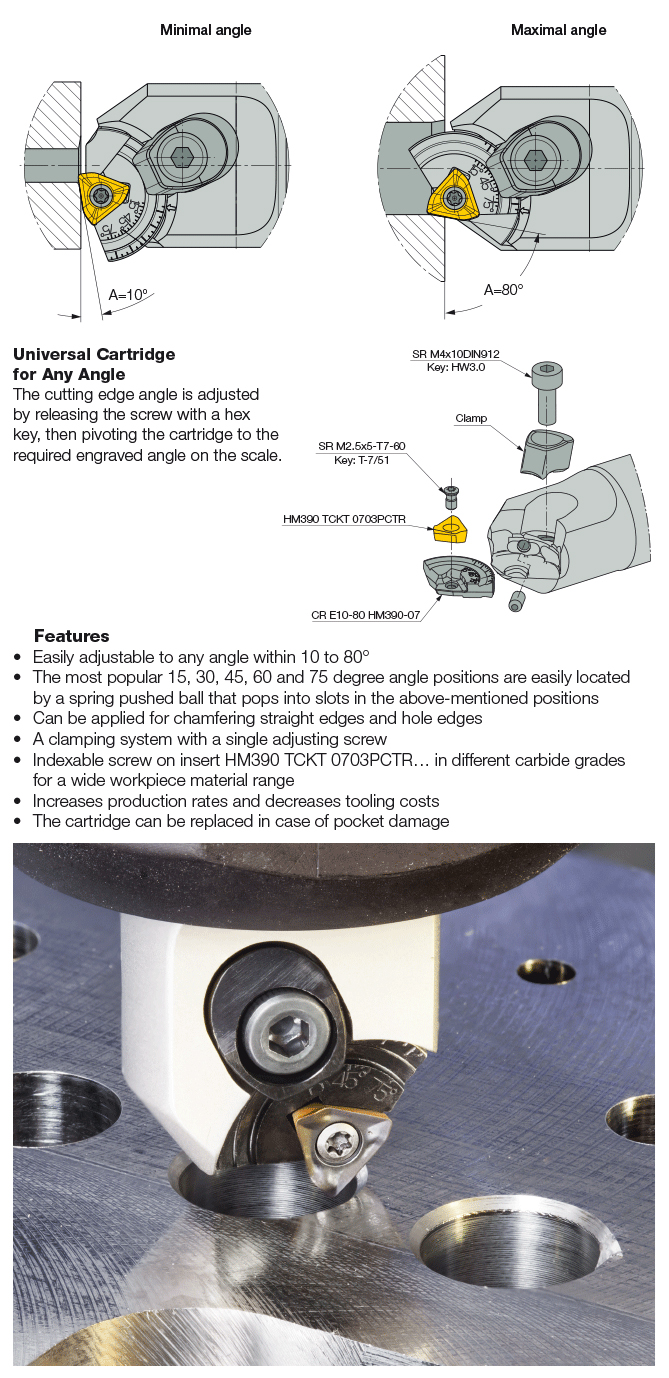

| Family Description | Chamfering endmill with an adjustable cutting edge angle, features a cartridge that can be rotated so that the insert's cutting edge angle can be adjusted within 10 to 80 degrees. | Country of Origin | Israel |
Shipping Info
Package Weight
0.758
