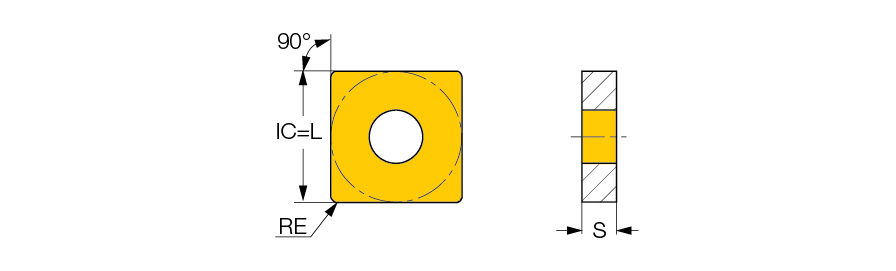

SNMS 432-12 IC20
Turning Insert; Square ; 1/2″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC20 ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.039″ |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Style | SNMS | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01771 ″/rev |
| Insert Size | 432 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 1/2″ | Chip Breaker Type | 12 |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Square single-sided inserts for soft and nonferrous materials. A special positive rake angle for moderate cutting forces. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.021
