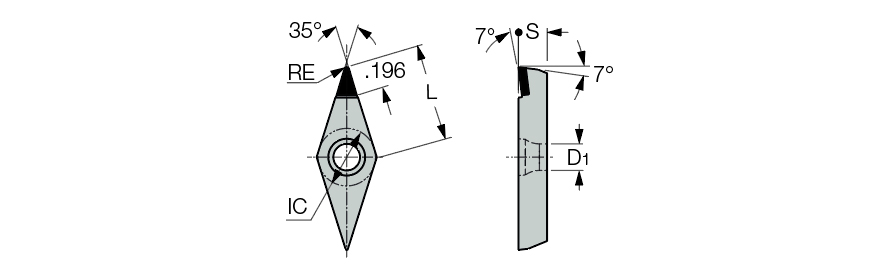

VCGT 331D ID5
Turning Insert; 35 Rhombic ; 0.654″ Length × 3/8″ IC × 0.0157″ Corner Radius ; ID5 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.004″ |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 95° Approach | Int. Machining Aluminum Wheels | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | VCGT | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | 331 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.654″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | DW |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCD | Shape | 35° Rhombic |
| Grade | ID5 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Model No | 8866423 |
Product Features

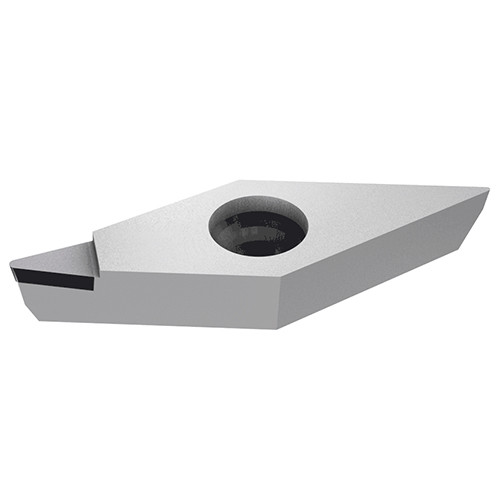

| Family Description | 35° rhombic inserts with a single brazed tip. Used for aluminum finishing (PCD). | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.031
