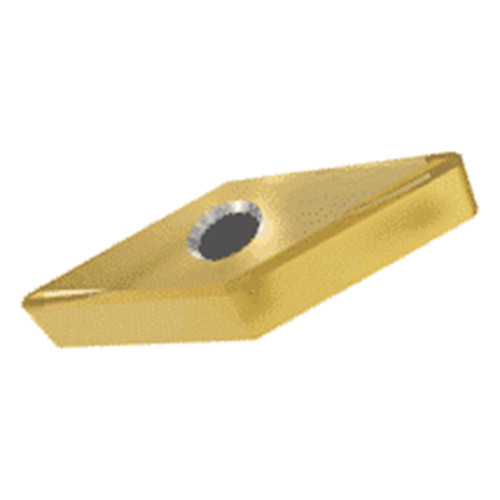

VNGG 332M4HM IB25HA

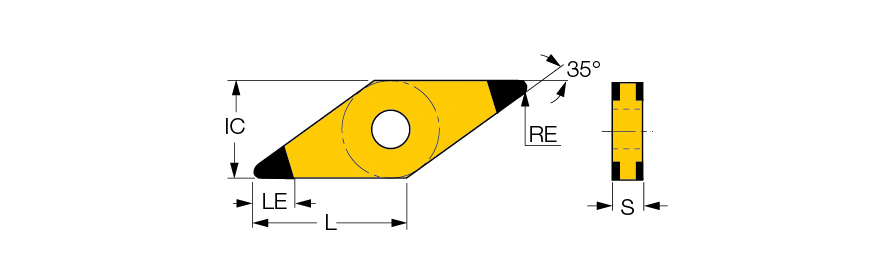

Turning Insert; 35 Rhombic ; 0.654″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IB25HA ; PCBN ; AlTiN
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.02″ |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Depth of Cut Maximum (APMX) | 0.031″ |
| Insert Style | VNGG | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 332 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.654″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | MHM |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Shape | 35° Rhombic |
| Coating | AlTiN | Series/List # | ISOI |
| Grade | IB25HA | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Model No | 8866423 |
Product Features
| Family Description | 35° Rhombic insert with 4 chipbreaking CBN tips for machining hardened steel. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, Click on More Info |
Shipping Info
Package Weight
0.033
