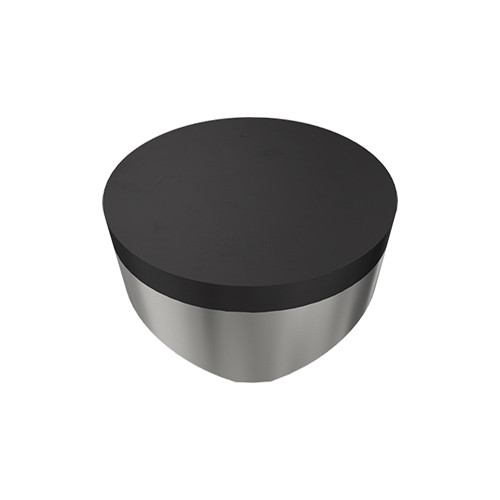

RCGX 22T IB90
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 0.02″ |
| Application | | Ext. Round Face & Turn | | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Style | RCGX | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |

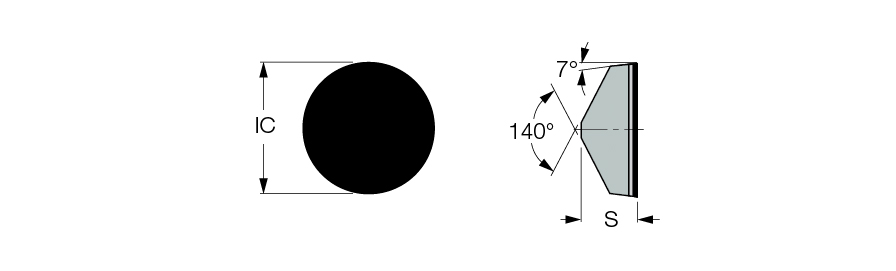

| Insert Size | 22T | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 1/8″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | X |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | Uncoated | Shape | Round |
| Grade | IB90 | Series/List # | ISOI |
| Tool Type | Turn Ultra hard Inserts | Body Material | Carbide |
| Min D.O.C. | 0.002″ | Model No | 8866423 |
Product Features
| Family Description | CBN round inserts with a flat rake, used for machining cast iron and hardened steel. | Country of Origin | USA |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.016
