T490 ELN D1.00-3-W1.00-11

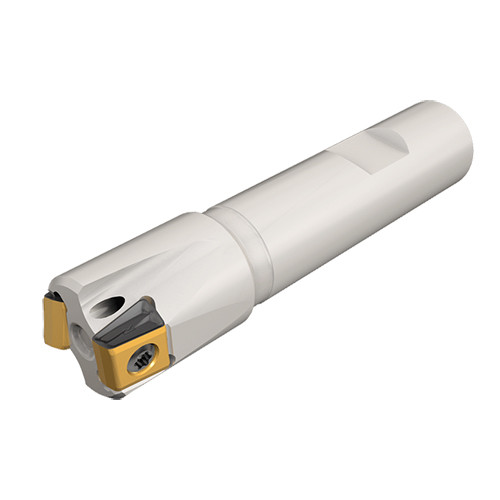

Indexable End Mill; 1″ Dia. × 0.35″ LOC × 1″ Shank Dia. × 4″ OAL × 1.42″ LU ; 3 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.35″ | Usable Length (LU) | 1.42″ |
| Overall Length (OAL) | 4″ | Flute Count (NOF) | 3 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.7 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | T490 LNHT 1106PNTR | Body Material | Steel |
| Weight of Item (WT) | 0.76 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 90° endmills carrying T490 LN#T 11... tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Important: Maximum clamping torque 28.3 lbf*in |
