| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.079″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.394″ |

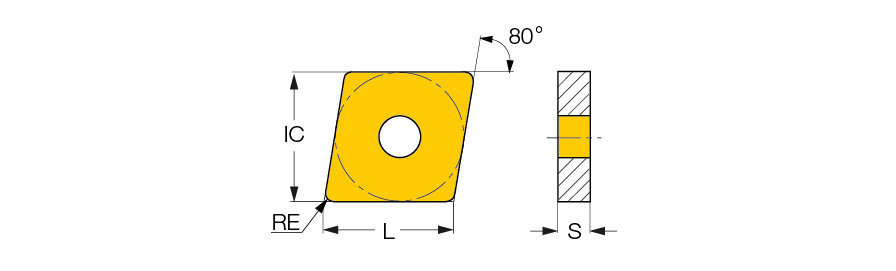

| Insert Style | CNMG | Min. Turning Feed (ft(min)) | 0.01181 ″/rev |
| Corner Radius (RE) | 0.0472″ | Max. Turning Feed (ft(max)) | 0.03543 ″/rev |
| Insert Size | 543 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.635″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |

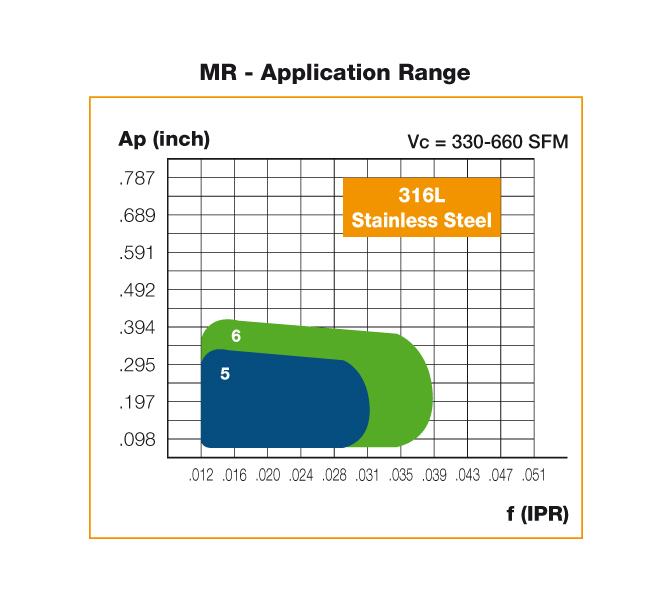

| Inscribed Circle Diameter (IC) | 5/8″ | Chip Breaker Type | MR |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | 80° Rhombic |
| Grade | IC8350 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 1/4″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features

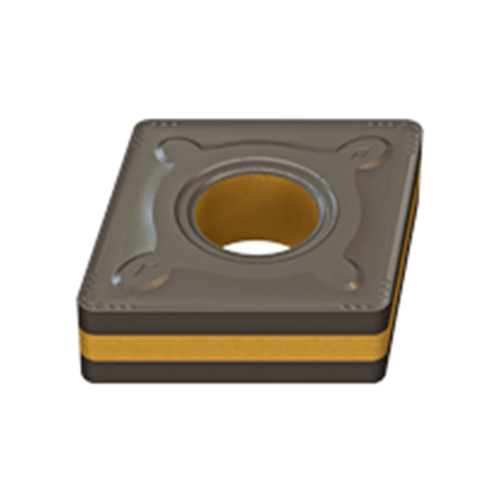

| Family Description | Double-sided 80° rhombic inserts with a positive rake angle. Used for rough turning on stainless steel and soft materials. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.047
