| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | | Min D.O.C. | 0.197″ |

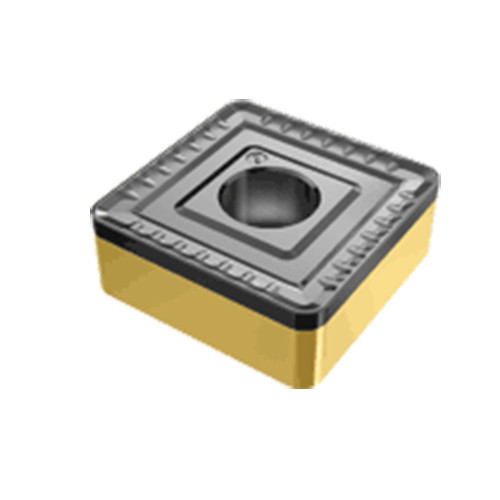

| Insert Style | SNMM | Depth of Cut Maximum (APMX) | 0.472″ |
| Corner Radius (RE) | 0.0945″ | Min. Turning Feed (ft(min)) | 0.0217 ″/rev |
| Insert Size | 866 | Max. Turning Feed (ft(max)) | 0.0512 ″/rev |

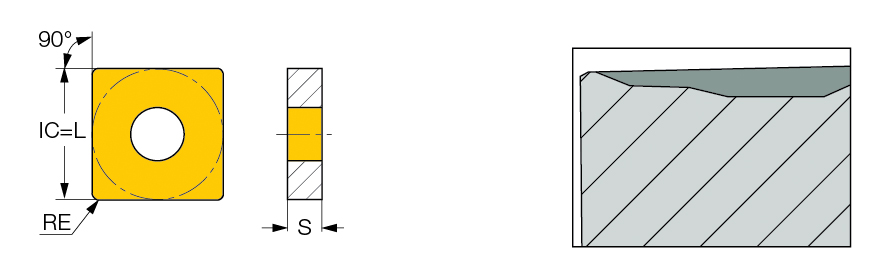

| Cutting Edge Length (L) | 1″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.359″ |
Product Features
| Family Description | Single-sided square inserts with a strong cutting edge. Used for extra rough turning in the windmill and shipbuilding industries. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.171
