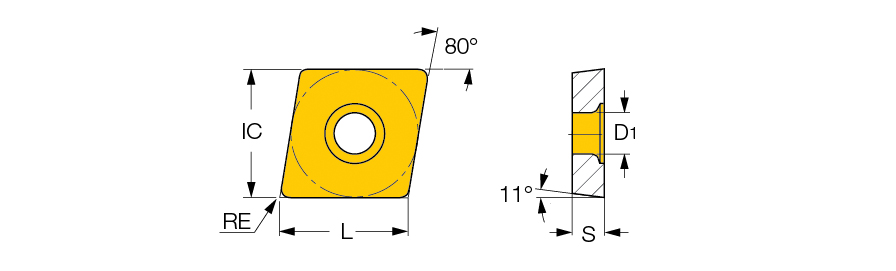

CPGT 3-1-SM IC907
Turning Insert; 80 Rhombic ; 0.381″ Length × 3/8″ IC × 0.0157″ Corner Radius ; IC907 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.024″ |
| Application | | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Style | CPGT | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.01377 ″/rev |
| Insert Size | 3-1 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.381″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | SM |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Shape | 80° Rhombic |
| Grade | IC907 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | 80° rhombic 11° positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.008
