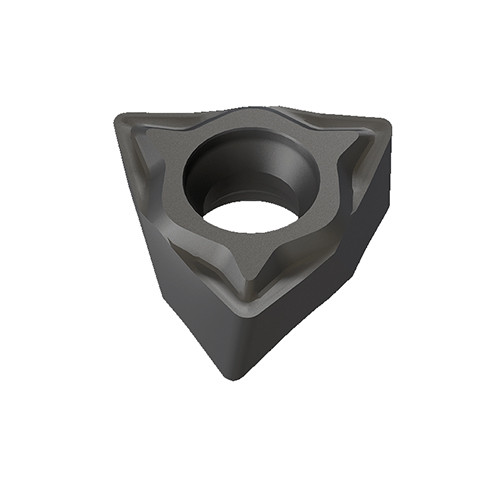

WNGP 220.5R-F2M IC908

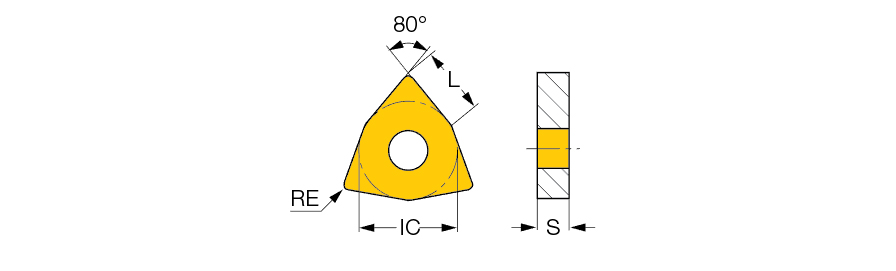

Turning Insert; 80 Trigon ; 0.171″ Length × 1/4″ IC × 0.0079″ Corner Radius ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.012″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | WNGP | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | 220 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.171″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | F2M |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiAlN | Series/List # | ISOI |
| Grade | IC908 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided inserts for super finish conditions on stainless steel. Low cutting forces due to positive rake. Negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
Shipping Info
Package Weight
0.006
