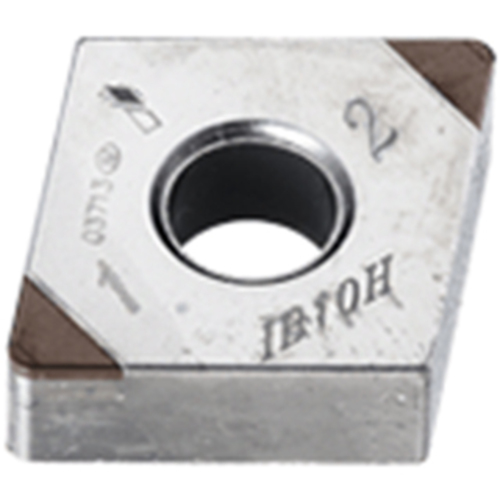

CNMA 432-MW2 IB10H

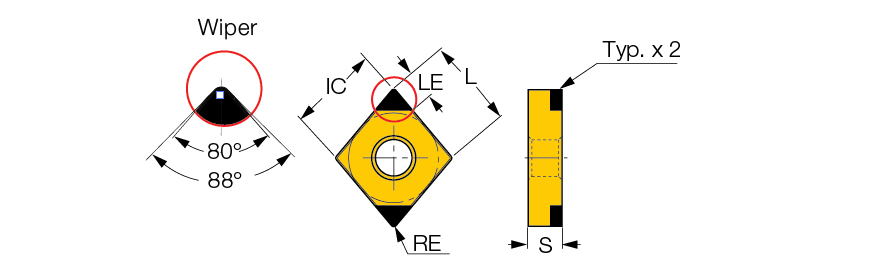

Turning Insert; 80 Rhombic ; 0.508″ Length × 1/2″ IC × 0.031″ Corner Radius ; IB10H ; PCBN ; Uncoated
| Applicable Material | Hard Materials| | Tool Type | Turn Ultra Hard Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Min D.O.C. | 0.002″ |
| Insert Style | CNMA | Depth of Cut Maximum (APMX) | 0.012″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.016 inch/rev |
| Insert Size | 432 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Shape | 80° Rhombic |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IB10H | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.1772″ |
Product Features
| Family Description | 80° rhombic inserts with 2 CBN wiper edge tips for machining hardened steel. | Country of Origin | SWITZERLAND |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.033
