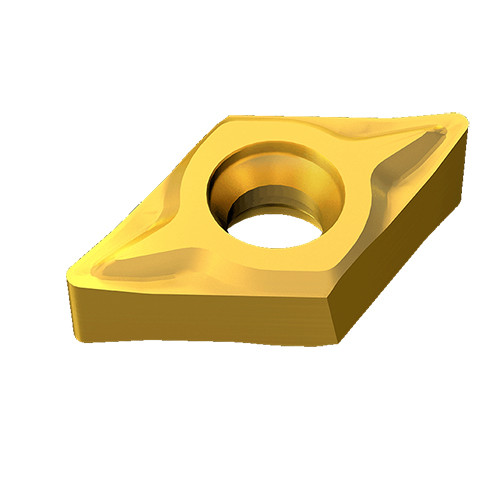

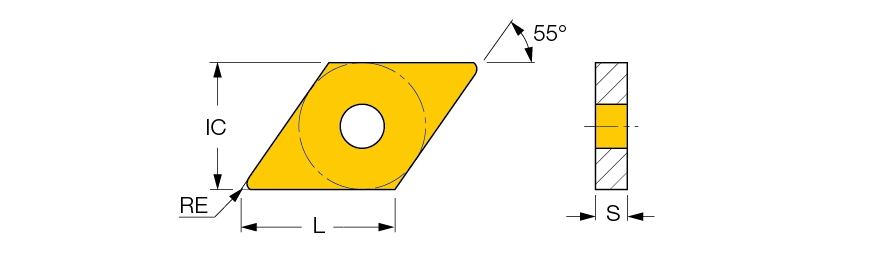

DNGP 220.5R-F2P IC530N
Turning Insert; 55 Rhombic ; 0.303″ Length × 1/4″ IC × 0.0079″ Corner Radius ; IC530N ; Cermet ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.012″ |
| Application | | Ext. 55° Diamond 93° Approach | Int. 55° Diamod 93° Back Appro | Int. 55° Diamond 100° Approach | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | DNGP | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | 220 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.303″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | F2P |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 55° Rhombic |
| Coating | TiCN+TiN | Series/List # | ISOI |
| Grade | IC530N | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided inserts, for finishing conditions on alloyed steel. Low cutting forces due to sharp and positive rake. Negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.005
