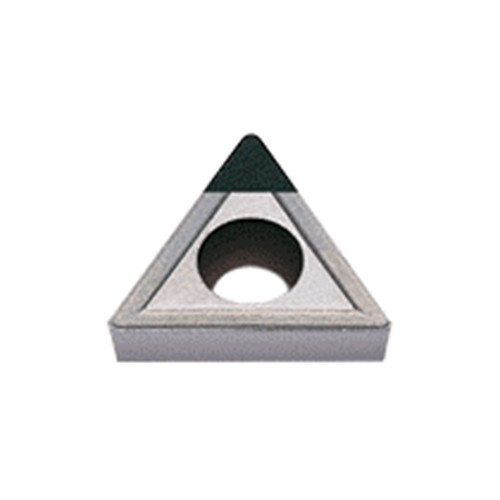

TCMT 2-1T IB50
Turning Insert; 60 Triangle ; 0.433″ Length × 1/4″ IC × 0.0157″ Corner Radius ; IB50 ; PCBN ; Uncoated
| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Style | TCMT | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Size | 2-1 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.433″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | W |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Shape | 60° Triangle |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IB50 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.112″ | Model No | 8866423 |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | Triangular positive inserts with a single CBN flat rake tip for machining hardened steel. | Country of Origin | Switzerland |

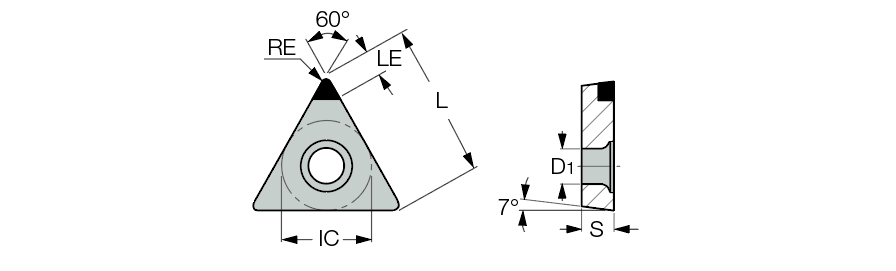

| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.029
