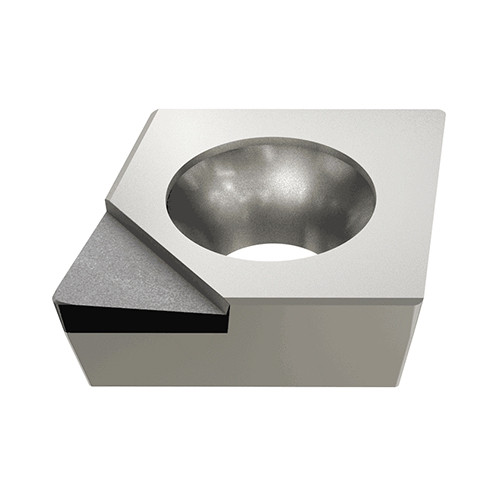

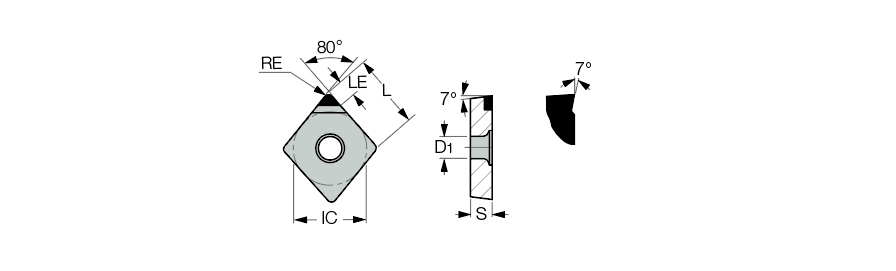

CCMT 2-1D ID5
Turning Insert; 80 Rhombic ; 0.248″ Length × 1/4″ IC × 0.0157″ Corner Radius ; ID5 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Depth of Cut Maximum (APMX) | 0.118″ |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Style | CCMT | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Corner Radius (RE) | 0.0157″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 2-1 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.248″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | DW |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCD | Shape | 80° Rhombic |
| Grade | ID5 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.11″ | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Model No | 8866423 |
| Min D.O.C. | 0.004″ |
Product Features
| Family Description | 80° rhombic inserts with PCD single-top corner, brazed tip and a positive rake angle. Used for aluminum finishing | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, Click on More Info |
Shipping Info
Package Weight
0.015
